The prior use of VVVF system, research fruits of human-machine engineering and the advanced manufacture technology bring about the more perfectly safe and comfortable Fushijia escalator. Meanwhile it results in the more convenient energy-saving and repair to vast users.

2.Very comfortable travel:
The comfortable product running is ensured by the advanced control system and decelerator, superior drive chain and precision installation craft and tech.

3.Perfect cascade, taste Classic:
It applies fine and exquisite craft of overall stainless steel step, special surface treatment technique, polishing and anti-skid treatment to addendum. It features as attractive, easy maintenance, firm material, anti-oxidation, rust-resistant etc.

30 degree escalator specification:

Model NO.	FSJ30-600(4000P/Hour)				FSJ30-800(6750P/Hour)				FSJ30-1000(9000P/Hour)
Travel height	Static load			Motor	Static load			Motor	Static load			Motor
Travel height	N.W.	R1	R2	Pauer	N.W.	R1	R2	Pauer	N.W.	R1	R2	Pauer
MM	KN	KN	KN	KN	KN	KN	KN	KN	KN	KN	KN	KN
3000	57	46	41	5.5	59	52	47	5.5	60	56	50	5.5
3500	60	49	44	5.5	63	56	50	5.5	64	60	53	8.0
4000	64	52	47	5.5	67	60	54	5.5	67	64	57	8.0
4500	68	56	50	5.5	71	64	57	8.0	71	67	60	8.0
5000	71	59	53	8.0	74	68	60	8.0	74	71	64	11
5500	75	62	56	8.0	82	74	66	11	82	77	69	11
6000	79	65	59	11	86	78	69	11	85	81	72	11

Model NO.	A	B	C	D	E
FSJ30-600	600	837	1200	1260	1837
FSJ30-800	800	1037	1400	1460	2037
FSJ30-1000	1000	1237	1600	1660	223

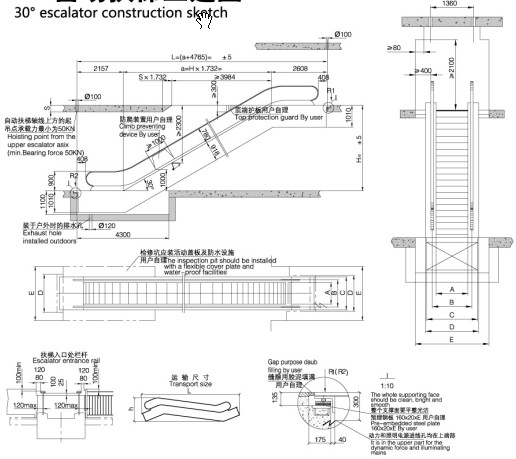

30 degree escalator layout:

35 degree escalator specification:

Model NO.	FSJ35-600(4000P/Hour)				FSJ35-800(6750P/Hour)				FSJ35-1000(9000P/Hour)
Travel height	Static load			Motor	Static load			Motor	Static load			Motor
Travel height	N.W.	R1	R2	Pauer	N.W.	R1	R2	Pauer	N.W.	R1	R2	Pauer
MM	KN	KN	KN	KN	KN	KN	KN	KN	KN	KN	KN	KN
3000	54	43	39	5.5	56	49	44	5.5	60	56	50	5.5
3500	57	43	41	5.5	60	52	47	5.5	64	60	53	8.0
4000	60	49	44	5.5	63	56	50	5.5	67	64	57	8.0
4500	64	52	46	5.5	66	59	53	8.0	71	67	60	8.0
5000	67	54	49	8.0	70	62	56	8.0	74	71	64	8.0
5500	70	57	51	5.5	73	65	59	8.0	82	77	69	11
6000	73	60	54	8.0	76	69	61	8.0	85	81	72	11

Model NO.	A	B	C	D	E
FSJ35-600	600	837	1200	1260	1837
FSJ35-800	800	1037	1400	1460	2037
FSJ35-1000	1000	1237	1600	1660	2237

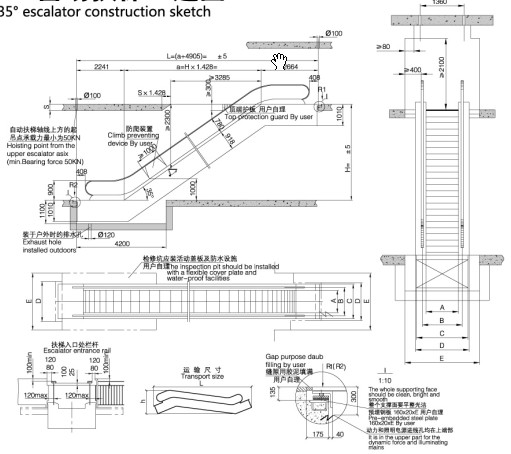

35 degree escalator layout:

Function:

Standard function:
1	Stairway light
2	Drive chain safety device
3	Skirt panel brush
4	Handrail entry safety protection
5	Emergency stop button
6	Antibiotic handrail
7	Automatic lubricator
8	Comb teeth safety device
9	Step loss protection device
10	Step chain safety device
11	Skirt safety device
12	Step sag protection
13	Drive chain protection device
14	Phase failure and phase loss protection
15	Non-operational reversal safety device
