Product detail:
1.Energy-saving and environmental protection running
Fushijia moving walk fully apply the advanced manufacture craft and technology. It greatly enhances the product properties, prolongs the service cycle of the elevator. It directly reduces the operation cost of the clients. Optional variable frequency drive technology gets the noticeable energy-saving effects. It cuts off the elevator running cost to the greatest extent
2. Safety devices
Fushijia moving walks set a series of safety protection devices. Its electrical control system applies fully computerized control. When there is something wrong in the running process, it can promptly cut off the power supply .The application of multiple energy-saving technologies saves the running cost for vast users at all times. Its unique shock-absorbing and noise-reducing structure lets the passengers enjoy the smooth, peaceful and comfortable travel.

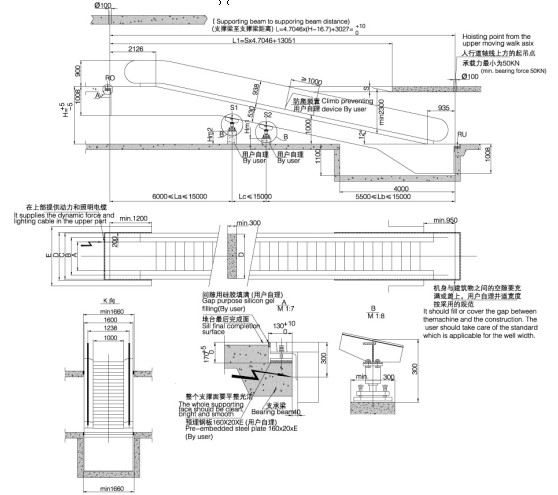

Moving walk layout:
Moving walk specification:
| The construction support includes the vibration load | ||||||
| No center support | One center support | Two center support | ||||
| RO=0.0045*L+11 | RO=0.0045*La+11 | RO=0.0045*La+11 | ||||
| RU=0.045*Lb+5 | RU=0.045*Lb+5 | |||||
| RU=0.045*L+5 | S1=0.00585*(La+Lb) | S1=0.00585*(La+Lc) | ||||
| / | S2=0.00585*(Lb+Lc) | |||||
| Travel height | Center support | La(m) | Lb(mm) | Lc(mm) | ||
| TROM | TO | S1 | S2 | |||
| 1601 | 2663 | / | / | / | / | / |
| 2664 | 4151 | 1 | / | L-7000 | 7000 | / |
| 4152 | 5851 | 1 | / | 15000 | L-15000 | / |
| 5852 | 6000 | 1 | 1 | 15000 | 7000 | L-22000 |
Balustrade,Handrail colors for your choosing:
Function:
| Standard function: | |
| 1 | Stairway light |
| 2 | Drive chain safety device |
| 3 | Skirt panel brush |
| 4 | Handrail entry safety protection |
| 5 | Emergency stop button |
| 6 | Antibiotic handrail |
| 7 | Automatic lubricator |
| 8 | Comb teeth safety device |
| 9 | Step loss protection device |
| 10 | Step chain safety device |
| 11 | Skirt safety device |
| 12 | Step sag protection |
| 13 | Drive chain protection device |
| 14 | Phase failure and phase loss protection |
| 15 | Non-operational reversal safety device |
Note:The above data is only for your reference. If you have any special request ,pls do not hesitate to contact with us anytime .
